Typical Hierarchical Data Setup
-- The query below shows a parent - child
-- (can be manager - employee) hierarchy
-- setup.


SELECT
 level idx,
 CAST('E-'||DECODE(level, 1, 0,
   DECODE(GREATEST(level,3),3,1,level-1))
     AS VARCHAR2(10)) emp_cd,
 DECODE(level, 1, NULL,
   DECODE(GREATEST(level,3),3,1,level-1))
    parent_idx
FROM DUAL
CONNECT BY level < 7
;

Analysis of Percentage

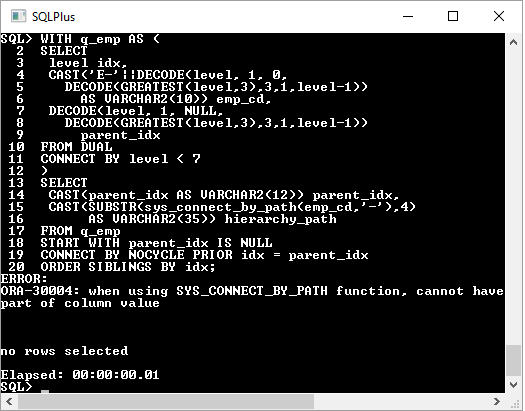

ORA-30004 Error in SYS_CONNECT_BY_PATH
-- The query below uses '-' in the
-- SYS_CONNECT_BY_PATH, which is part of
-- Emp_cd, causing the query to throw
-- ORA-30004 error.


WITH q_emp AS (
SELECT
 level idx,
 CAST('E-'||DECODE(level, 1, 0,
   DECODE(GREATEST(level,3),3,1,level-1))
     AS VARCHAR2(10)) emp_cd,
 DECODE(level, 1, NULL,
   DECODE(GREATEST(level,3),3,1,level-1))
     parent_idx
FROM DUAL
CONNECT BY level < 7)
SELECT
 CAST(parent_idx AS VARCHAR2(12)) parent_idx,
 CAST(SUBSTR(sys_connect_by_path(emp_cd,'-'),4)
      AS VARCHAR2(35)) hierarchy_path
FROM q_emp
START WITH parent_idx IS NULL
CONNECT BY NOCYCLE PRIOR idx = parent_idx
ORDER SIBLINGS BY idx;
Analysis of Percentage

Avoiding ORA-30004 in SYS_CONNECT_BY_PATH
-- By using a seperator other than "-"
-- such as " <- ", the ORA-30004 error is
-- avoided in displaying hierarchy.


WITH q_emp AS (
SELECT
 level idx,
 CAST('E-'||DECODE(level, 1, 0,
   DECODE(GREATEST(level,3),3,1,level-1))
     AS VARCHAR2(10)) emp_cd,
 DECODE(level, 1, NULL,
   DECODE(GREATEST(level,3),3,1,level-1))
    parent_idx
FROM DUAL
CONNECT BY level < 7
)
SELECT
 CAST(parent_idx AS VARCHAR2(12)) parent_idx,
 CAST(SUBSTR(sys_connect_by_path(emp_cd,' <- ')
      ,4) AS VARCHAR2(35)) hierarchy_path
FROM q_emp
START WITH parent_idx IS NULL
CONNECT BY NOCYCLE PRIOR idx = parent_idx
ORDER SIBLINGS BY idx;

Analysis of Percentage

Hierarchy Queries

Hierarchy Queries - NoCycle (avoid ORA-01436)
